Bag Filter Dust Collector
YT-01MC
Pulse Jet Bag Filter Dust Collector
The workhorse for high-volume, high-temperature and heavy dust loads.
- Model series
- YT-01MC48 – YT-01MC300
- Air volume
- 3,000 – 25,000 m³/h
- Fan power
- 5.5 – 45 kW
- Filter bags
- 48 – 300 per unit
- Cleaning
- On-line pulse jet, 1" valves
- Housing
- Carbon steel, custom thickness
- CE certified · ISO 9001 manufacturer
- 12-month warranty on main equipment
- Custom size, material and colour
Overview
A pulse-jet baghouse sized for continuous industrial duty. Compressed-air pulses clean the bags on-line, so the unit keeps a low, stable pressure drop through the shift instead of slowly choking. Media can be specified for heat, moisture, abrasion or static.
- Set into the stiffened panels of the housing, the rectangular access doors provide the service openings for the collector. Each door is fastened around its rim and seals against the panel, keeping the casing airtight while the unit runs. During a maintenance stop, an operator opens a door to inspect the bags and the internal walls, then fastens it closed again within minutes. The doors are positioned so that the areas needing the most attention are reached without removing panels.

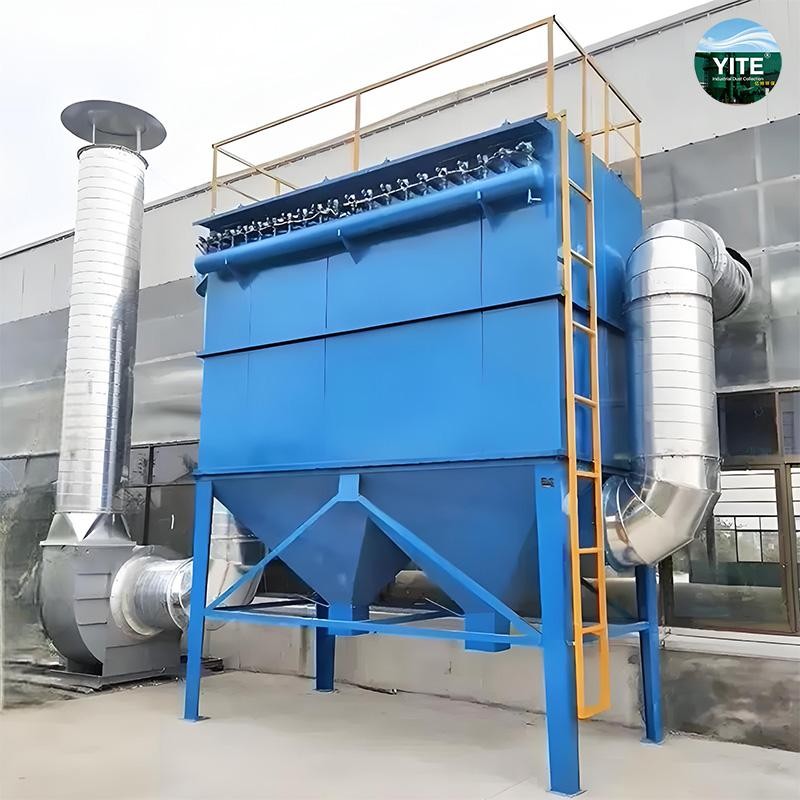

- Built from carbon steel with stiffened panels and a protective paint finish, the casing stays rigid under continuous suction. A wide flanged inlet gives the site ducting a firm, sealed connection, and three inverted-pyramid hoppers collect the released dust and discharge it evenly through flanged outlets. Access doors on the housing allow quick inspection of the bags.
- The same collector design can control dust in many different processes, including metal grinding and polishing, stone cutting and grinding, grain and feed processing, foundry sand handling, powder packing and sandblasting. For each application the unit is selected to match the dust load, and the flanged inlet connects simply to the workshop ducting.
- Every machine can be supplied to your specification. Body color can be blue, white, gray, green or any shade you choose; supply voltage can be 380V, 400V or 480V; overall size follows your workshop; air volume matches the working condition; and the nameplate can carry your logo. Since the factory handles customization directly, details are confirmed before production and the machine arrives ready to run.
- Every collector is manufactured and supplied directly by the factory and passes a quality check before shipment, covering welding, paint, fasteners and the cleaning system. Our team guides installation and answers technical questions after the machine is running.
Key advantages
-
On-line pulse cleaning
Bags are cleaned row by row while the fan keeps running, so extraction never stops for a cleaning cycle.
-
Media matched to your dust
Polyester, anti-static polyester, fibreglass, PPS, aramid and PTFE-membrane bags — chosen for your temperature, humidity and chemistry.
-
Serviced from the top
Bags and cages lift out through the clean-air plenum. No confined-space entry into the dirty side.
-
Built to your drawing
Inlet position, hopper angle, discharge type, platform and ladder, plate thickness and paint colour are all specified per order.

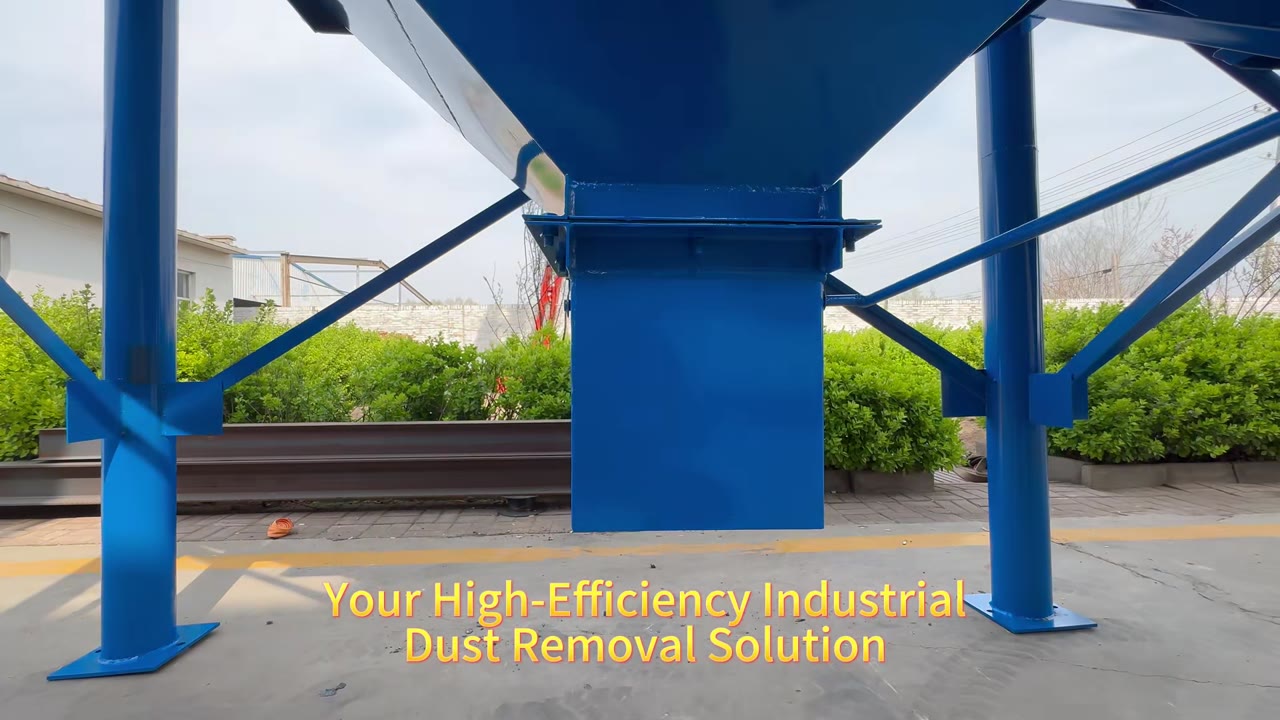

See it running
Technical data
Model specifications
Full range as manufactured. Sizes and configurations outside this table are built to order.
| Model | Air volume m³/h | Fan kW | Filter bags qty | 1" valves qty | Dimensions mm | |||
|---|---|---|---|---|---|---|---|---|
| YT-01MC48 | 2000–3000 | 5.5 | 48 | 6 | 1200×1870×4200 | — | — | — |
| YT-01MC64 | 3000–4000 | 7.5 | 64 | 8 | 1550×1850×4200 | — | — | — |
| YT-01MC80 | 4000–5000 | 7.5 | 80 | 8 | 1550×2160×4400 | — | — | — |
| YT-01MC140 | 8000–12000 | 18.5 | 140 | 14 | 2560×2160×4400 | — | — | — |
| YT-01MC200 | 15000–18000 | 22 / 30 | 200 | 20 | 3800×2160×4800 | — | — | — |
| YT-01MC300 | 19404–25000 | 37 / 45 | 300 | 30 | 5500×2160×4800 | — | — | — |
-
YT-01MC48
Air volume 2000–3000 m³/h
Fan 5.5 kW
Filter bags 48 qty
1" valves 6 qty
Dimensions 1200×1870×4200 mm
—
—
—
-
YT-01MC64
Air volume 3000–4000 m³/h
Fan 7.5 kW
Filter bags 64 qty
1" valves 8 qty
Dimensions 1550×1850×4200 mm
—
—
—
-
YT-01MC80
Air volume 4000–5000 m³/h
Fan 7.5 kW
Filter bags 80 qty
1" valves 8 qty
Dimensions 1550×2160×4400 mm
—
—
—
-
YT-01MC140
Air volume 8000–12000 m³/h
Fan 18.5 kW
Filter bags 140 qty
1" valves 14 qty
Dimensions 2560×2160×4400 mm
—
—
—
-
YT-01MC200
Air volume 15000–18000 m³/h
Fan 22 / 30 kW
Filter bags 200 qty
1" valves 20 qty
Dimensions 3800×2160×4800 mm
—
—
—
-
YT-01MC300
Air volume 19404–25000 m³/h
Fan 37 / 45 kW
Filter bags 300 qty
1" valves 30 qty
Dimensions 5500×2160×4800 mm
—
—
—

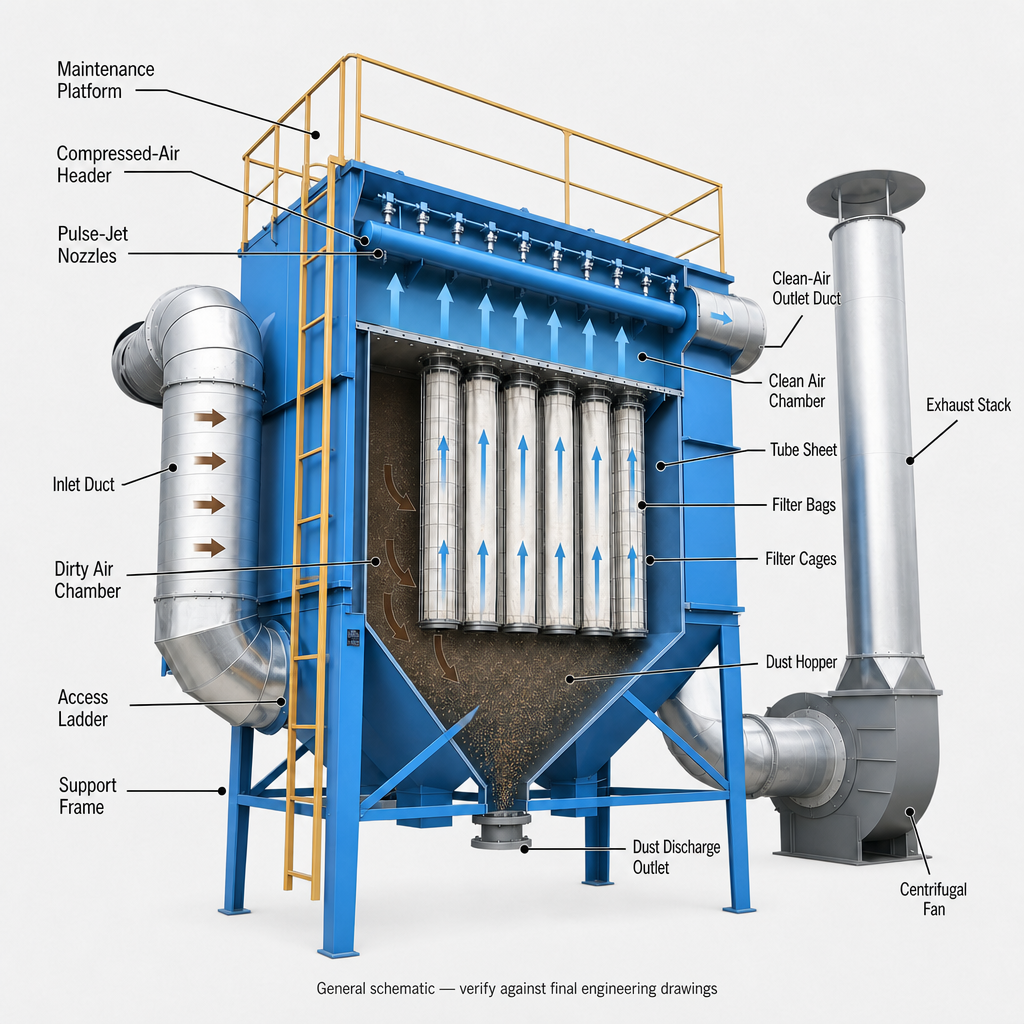

Component layout
Need a CAD file or a general-arrangement drawing for your bid documents? Request it here — we send them on request.
Questions
What buyers ask before ordering
If your question is not here, ask it in the form — an engineer answers, not a salesperson.
-
How do I know which model fits my workshop?
Tell us the total air volume you need, or list your extraction points and duct diameters and we will calculate it. If you only know the workshop area and the process, that is enough for a first sizing.
