Spare Parts & Consumables
All brands
Filter Bags, Cartridges & Spare Parts
Consumables and wear parts — for our machines and other brands.
- Filter bags
- Polyester, anti-static, fibreglass, PPS, PTFE membrane
- Cartridges
- Polyester and PTFE-coated, standard and custom
- Valves
- 1", 1.5", 2" diaphragm — 220V / 24V coils
- Controls
- Pulse controllers, control cabinets (built in-house)
- Discharge
- Rotary airlock valves, screw conveyors
- Samples
- Free material sample cards on request
- CE certified · ISO 9001 manufacturer
- 12-month warranty on main equipment
- Custom size, material and colour
Overview
Filter media and wear parts for bag, cartridge and cyclone systems. We manufacture our own bags, cages and control cabinets, so we can match a non-standard size instead of forcing you to change equipment. Trial quantities are accepted on first orders, and free material sample cards are available.
Key advantages
-
One source for all consumables
Bags, cartridges, valves, cages and controls from one supplier instead of chasing four.
-
We make the parts
Bags, cages and control cabinets are manufactured in our own workshop — we are not reselling someone else's stock.
-
Free material samples
We send sample cards covering the media grades so you can verify the material before committing to an order.
-
Trial quantities accepted
A first order does not have to be a container. Start small, verify the fit, then scale up.
Technical data
Model specifications
Full range as manufactured. Sizes and configurations outside this table are built to order.
| Item | Options | Note |
|---|---|---|
| Filter bags | Polyester, anti-static polyester, fibreglass, PPS, aramid, PTFE membrane | Custom diameter and length |

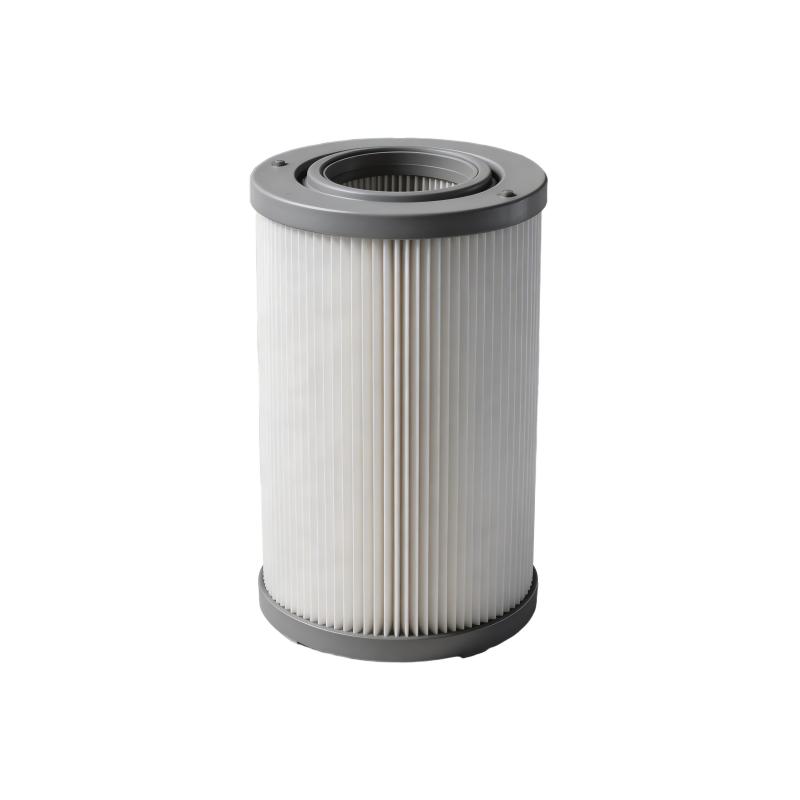

| Filter cartridges | Polyester, PTFE-coated | Standard 325×500 mm and custom |
| Pulse solenoid valves | 1", 1.5", 2" diaphragm; 220V / 24V coils | ASCO-compatible and economy grades |
| Pulse jet controllers | Programmable pulse width and interval | Retrofit to existing collectors |
| Rotary airlock valves | Cast iron and fabricated | Sized to hopper outlet |
| Filter cages | Galvanized and stainless | Custom length and wire count |
| Control cabinets | Built in-house to your voltage | Not outsourced |
| Screw conveyors | Shafted and shaftless | Matched to hopper output |
-
Filter bags
Options Polyester, anti-static polyester, fibreglass, PPS, aramid, PTFE membrane
- Note
- Custom diameter and length
-
Filter cartridges
Options Polyester, PTFE-coated
- Note
- Standard 325×500 mm and custom
-
Pulse solenoid valves
Options 1", 1.5", 2" diaphragm; 220V / 24V coils
- Note
- ASCO-compatible and economy grades
-
Pulse jet controllers
Options Programmable pulse width and interval
- Note
- Retrofit to existing collectors
-
Rotary airlock valves
Options Cast iron and fabricated
- Note
- Sized to hopper outlet
-
Filter cages
Options Galvanized and stainless
- Note
- Custom length and wire count
-
Control cabinets
Options Built in-house to your voltage
- Note
- Not outsourced
-
Screw conveyors
Options Shafted and shaftless
- Note
- Matched to hopper output
Questions
What buyers ask before ordering
If your question is not here, ask it in the form — an engineer answers, not a salesperson.
-
Can you supply parts for another brand of collector?
Yes, and this is a large part of what we do. Send the dimensions — bag diameter and length, cartridge size, valve thread and coil voltage — and we will match them.
-
How do I choose the filter media?
Media is chosen from your operating temperature, humidity, chemistry and whether the dust is combustible. Tell us those four things and we will recommend a grade. We will also send sample cards.
-
Do you accept small orders?
Yes. Trial quantities are accepted so you can verify the material and fit before placing a bulk order.
-
How are urgent spares shipped?
By air for breakdown spares and by sea for stock replenishment. We handle the commercial invoice and shipping documents for customs clearance.
